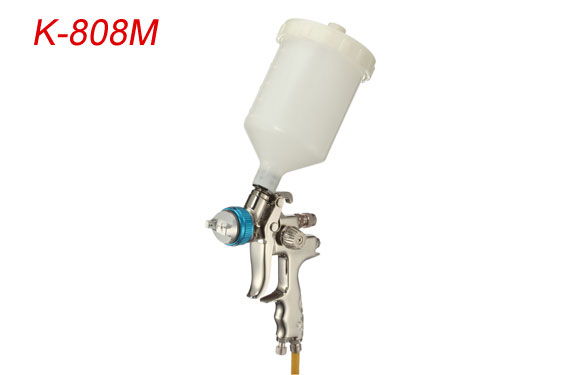

K-808M

KR808M(XRP)

Model No KR808M	Type	Nozzle Size	Fluid Output	Pattern Width	Air Consumption
		mm	cc/min	mm	l/min
KR808M-1.3	Gravity	1.3	170	300	240
KR808M-1.4		1.4	180	300	240
KR808M-1.7		1.7	220	320	240
KR808M-1.9		1.9	250	325	240
KR808M-2.1		2.1	280	340	240
KR808M-2.5		2.5	320	350	240

Model No KR808M	使用距離mm	Cup Capacity	Air Inlet	Fluiet Inlet	Working Pressure	Gun Weight	塗料附著力
KR808M-1.3	150~200	600 c.c	1/4''PS	M16*1.5P	10-28psi	450g	75%
KR808M-1.4
KR808M-1.7
KR808M-1.9
KR808M-2.1
KR808M-2.5

KH808M(HVLP)

Model No KR808M	Type	Nozzle Size	Fluid Output	Pattern Width	Air Consumption
		mm	cc/min	mm	l/min
KH808M-1.3	Gravity	1.3	120	330	260
KH808M-1.4		1.4	140	330	260
KH808M-1.7		1.7	165	340	260
KH808M-1.9		1.9	190	340	260
KH808M-2.1		2.1	230	350	260
KR808M-2.5		2.5	280	360	260

Model No KR808M	使用距離mm	Cup Capacity	Air Inlet	Fluiet Inlet	Working Pressure	Gun Weight	塗料附著力
KH808M-1.3	130~180	600 c.c	1/4''PS	M16*1.5P	10-28psi	450g	80%
KH808M-1.4
KH808M-1.7
KH808M-1.9
KH808M-2.1
KH808M-2.5
